Types
of Capacitors: |
|
| |
1)
Filter Capacitor

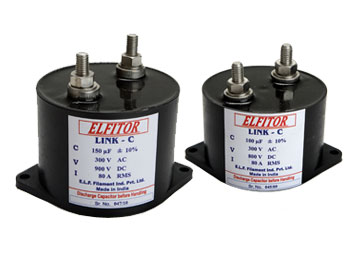

2) DC Link Capacitor
|
|
| |
Application: |
|
| |
DC Link Capacitor
1) In UPS Systems
2) Induction Heating Equipments
3) High Frequency Welding Equipments
4) High Frequency Invertors
|
|
| |
|
|
| |
Specifications
(100 µF) |
|
| |
1)
Capacitance : 100 µF @ 25 deg C, 1 KHz
2) Tolerance : ± 10%
3) Rated D.C Voltage : 800 V
4) I rms @ 25 deg C: 80 A
5) TAN @ 1KHz : ≤ 0.0008
6) Insulation Resistance: 500 V dc @ 25
deg C (MΩ x µF=10,000 mini.)
7) D.C Test Voltage : 1200 V for 1 min.
8) H.V Insulation Test between Shorted Terminals & Container :
2500 V for 1 min.
9) Casing Material : Plastic Container (Integrated Mounting
Flanges)
10) Filling Material : PolyUrethane Resin
11) Terminals : Tin Plated M8 Brass Screws
12) Operating Temperature Range : -50 deg C to +90 deg C
|
|
| |
Specifications
(150 µF) |
|
| |
1)
Capacitance : 150 µF @ 25 deg C, 1 KHz
2) Tolerance : ± 10%
3) Rated D.C Voltage : 900 V
4) I rms @ 25 deg C: 80 A
5) TAN @ 1KHz : ≤ 0.0015
6) Insulation Resistance: 500 V dc @ 25
deg C (MΩ x µF=10,000 mini.)
7) D.C Test Voltage : 1200 V for 1 min.
8) H.V Insulation Test between Shorted Terminals & Container :
2500 V for 1 min.
9) Casing Material : Plastic Container (Integrated Mounting
Flanges)
10) Filling Material : PolyUrethane Resin
11) Terminals : Tin Plated M8 Brass Screws
12) Operating Temperature Range : -50 deg C to +90 deg C
|
|
| |
For customized requirements, please contact sales@elfindia.com
or use Contact
Form |
|
| |
|
|
|
|
|
|
|
